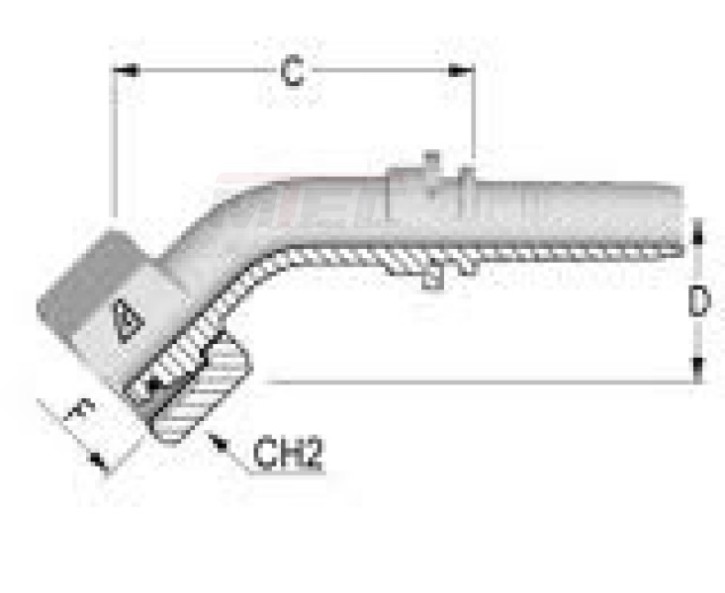

DKOS 45° Metrisch mit Überwurfmutter, schwer
Art.Nr. 101127
ALFAGOMMA
| Gewinde | Schlauch Ø | C (mm) | CH (SW) | Ø Inch | DASH | F | Werkstoff | ArtNr | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 6S (M14x1,5) | DN 6 (1/4") | 48,6 | 16 | 1/4 | 4 | M14x1,5 | Stvz | 304685 | ||
| 8S (M16X1,5) | DN 6 (1/4") | 48,6 | 16 | 1/4 | 4 | M16x1,5 | Stvz | 304686 | ||
| 10S (18X1,5) | DN 6 (1/4") | 43,5 | 19 | 1/4 | 4 | M18x1,5 | Stvz | 304687 | ||
| 12S (M20x1,5) | DN 8 (5/16") | 48,1 | 21 | 5/16 | 5 | M20x1,5 | Stvz | 304688 | ||
| 12S (M20x1,5) | DN 10 (3/8") | 50,6 | 20 | 3/8 | 6 | M20x1,5 | Stvz | 304689 | ||
| 14S (M22x1,5) | DN 10 (3/8") | 52,9 | 21 | 3/8 | 6 | M22x1,5 | Stvz | 304690 | ||
| 16S (M24x1,5) | DN 12 (1/2") | 55,8 | 21,5 | 1/2 | 8 | M24x1,5 | Stvz | 304691 | ||
| 20S (M30x2) | DN 16 (5/8") | 66,3 | 30 | 5/8 | 10 | M30x2 | Stvz | 304692 | ||
| 20S (M30x2) | DN 19 (3/4") | 66,099999999999994 | 29 | 3/4 | 12 | M30x2 | Stvz | 304693 | ||
| 25S (36x2) | DN 19 (3/4") | 69,5 | 33 | 3/4 | 12 | M36x2 | Stvz | 304694 | ||
| 30S (42x2) | DN 25 (1") | 110,3 | 40,5 | 1 | 16 | M42x2 | Stvz | 304695 | ||
| 38S (52x2) | DN 32 (11/4") | 109 | 45 | 1 1/4 | 20 | M52x2 | Stvz | 304696 |
