DKOL 45° Metrisch mit Überwurfmutter, leicht
Art.Nr. 101124
H1221543
45° Metric Female 24° Cone with O-Ring - Light DIN 3865 - DKOL 45
Solid one piece
45° Metric Female 24° Cone with O-Ring - Light DIN 3865 - DKOL 45
Solid one piece

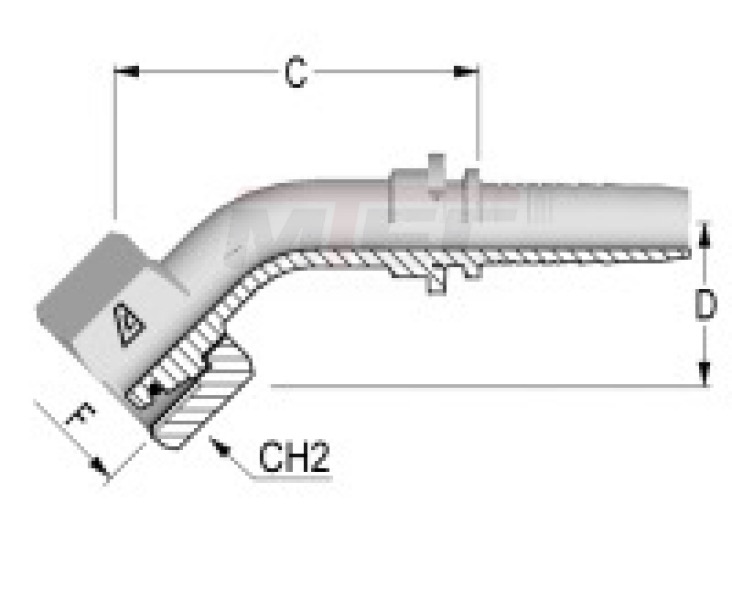

| Gewinde | Schlauch Ø | C (mm) | CH (SW) | Ø Inch | DASH | F | Werkstoff | ArtNr | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 6L (M12x1,5) | DN 6 (1/4") | 42,7 | 15 | 1/4 | 4 | M12x1,5 | Stvz | 304640 | ||
| 8L (M14X1,5) | DN 6 (1/4") | 42,7 | 17,5 | 1/4 | 4 | M14x1,5 | Stvz | 304641 | ||
| 10L (M16X1,5) | DN 6 (1/4") | 42,7 | 20 | 1/4 | 4 | M16x1,5 | Stvz | 304642 | ||
| 10L (M16X1,5) | DN 8 (5/16") | 47,5 | 20 | 5/16 | 5 | M16x1,5 | Stvz | 304643 | ||
| 12L (18X1,5) | DN 6 (1/4") | 46,8 | 19,5 | 1/4 | 4 | M18x1,5 | Stvz | 315591 | ||
| 12L (18X1,5) | DN 8 (5/16") | 46,8 | 19,5 | 5/16 | 5 | M18x1,5 | Stvz | 315590 | ||
| 12L (18X1,5) | DN 10 (3/8") | 46,8 | 19,5 | 3/8 | 6 | M18x1,5 | Stvz | 304644 | ||
| 15L (M22X1,5) | DN 12 (1/2") | 55 | 21 | 1/2 | 8 | M22x1,5 | Stvz | 304645 | ||
| 18L (M26X1,5) | DN 16 (5/8") | 65,3 | 24 | 5/8 | 10 | M26x1,5 | Stvz | 304646 | ||
| 22L (M30x2,0) | DN 19 (3/4") | 69,400000000000006 | 32 | 3/4 | 12 | M30x2 | Stvz | 304647 | ||
| 28L (M36x2,0) | DN 25 (1") | 91,4 | 32 | 1 | 16 | M36x2 | Stvz | 304648 | ||
| 35L (M45x2,0) | DN 32 (11/4") | 135,5 | 45 | 1 1/4 | 20 | M45x2 | Stvz | 304649 | ||
| 42L (M52x2,0) | DN 40 (11/2") | 114,1 | 47 | 1 1/2 | 24 | M52x2 | Stvz | 304650 |
