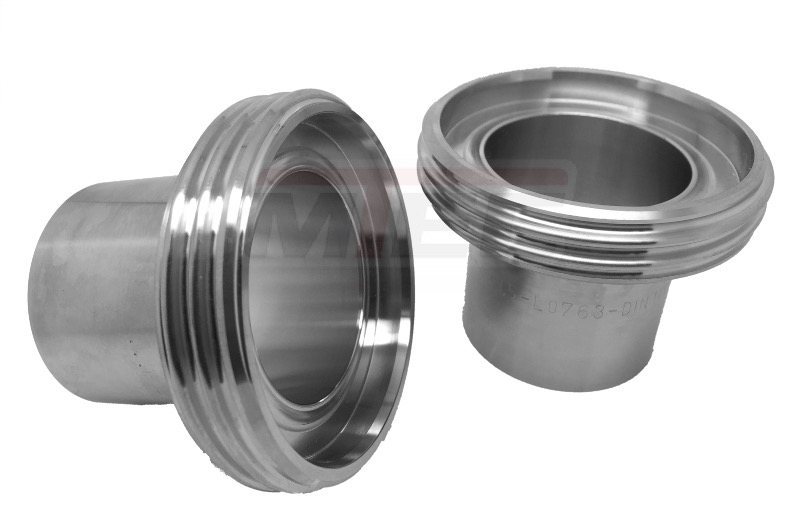

[DIN] Gewindestutzen 11864-1 Form A - lang (Aseptik-Typ)
EUR 28,37 - EUR 133,42
inkl. 19 % USt zzgl. Versandkosten
Sofort versandfähig, ausreichende Stückzahl
Art.Nr. 101360
Gewindestutzen DIN 11864-2 Form A - lang (Aseptik-Typ)

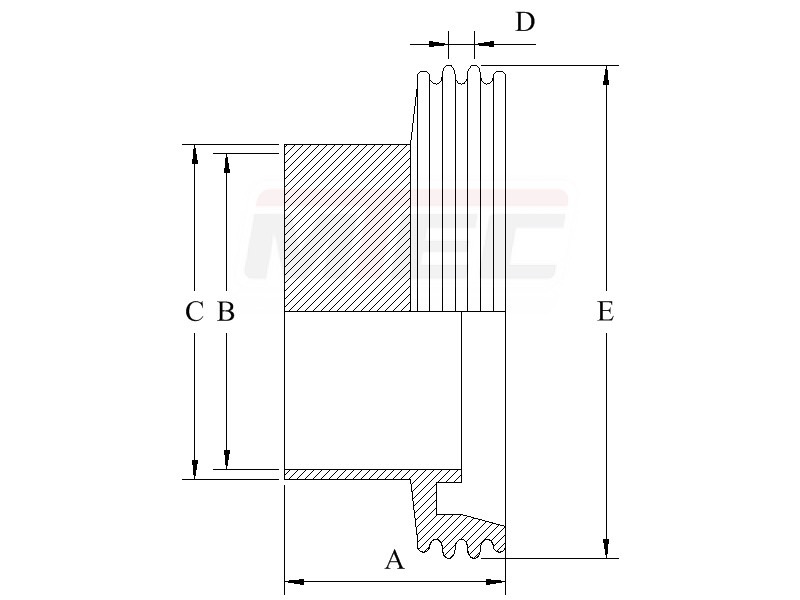

| DN | Werkstoff | Rd [E] | [A]mm | [B]mm | [C]mm | Werkstoff | ArtNr | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 1.4404 V4A | 130x1/4" | 64 | 100 | 104 | 316 | 305936 | |||
| 10 | 1.4404 V4A | 28x1/8" | 41 | 10 | 13 | 316 | 305927 | |||
| 32 | 1.4404 V4A | 58x21/6" | 48 | 32 | 35 | 316 | 305931 | |||
| 15 | 1.4404 V4A | 34x1/8" | 41 | 16 | 19 | 316 | 305928 | |||
| 20 | 1.4404 V4A | 44x1/8" | 43 | 20 | 23 | 316 | 305929 | |||
| 25 | 1.4404 V4A | 52x1/6" | 43 | 26 | 29 | 316 | 305930 | |||
| 40 | 1.4404 V4A | 65x1/6" | 48 | 38 | 41 | 316 | 305932 | |||
| 50 | 1.4404 V4A | 78x1/6" | 48 | 50 | 53 | 316 | 305933 | |||
| 65 | 1.4404 V4A | 95x1/6" | 60 | 66 | 70 | 316 | 305934 | |||
| 80 | 1.4404 V4A | 110x1/4" | 64 | 81 | 85 | 316 | 305935 |
